Smipack BP800
Smipack BP800

Alternative Views:


Free Shipping
Product Code: BP800
BP800

Description

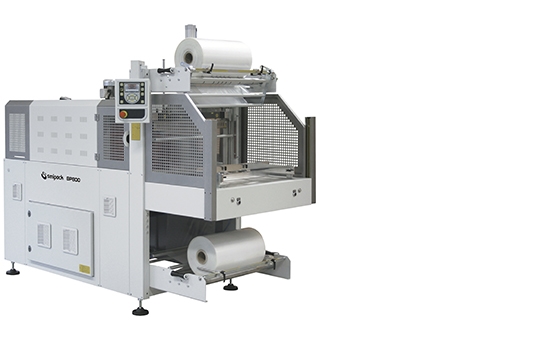

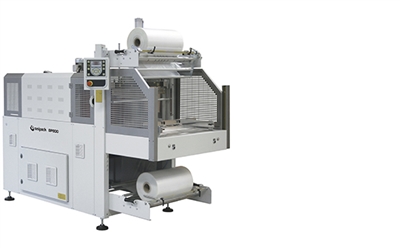

The Smipack BP800 is a semi automatic machine which is available with both a pusher infeed or belt infeed with running speeds of up to 10 packs per minute, a sealing bar width of 760mm and a maximum pack height of 380mm making it ideal for a wide range of products.

  • Semi-automatic shrink wrapper
  • Mono-chamber tunnel
  • Motorized upper and lower film unwinding
  • Pneumatic product pusher, activated by two buttons
  • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
  • Monoblock frame
  • Pneumatic sealing bar equipped with safety sensors
  • Pneumatic film cut by cold blade
  • Rollers are positioned on the upper and lower unwinders to make the reels easier to load
  • Metric graduation based film reels centering system
  • FLXMOD® electronic control system working by means of a 4.3" graphic LCD rotating control panel, equipped with PLC
  • power and control section made up of:
    • Inverter
    • IN/OUT (Input/Output) command modules with 16 digital inputs/outputs
    • Analog inputs command modules
    • Thermocouple reading control modules
    • Such system allows a simple and accurate control of all current operations, that is:
      • storing of 20 different working cycles
      • speed adjustment of the shrinkwrapper and tunnel conveyors by means of an inverter
    • Process statistics
    • Tunnel air flow adjustable by means of independent deflectors
    • Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
      • the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
      • the conveyor can bear a product weight up to 30 kilos
      • the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
      • the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
  • Oven cooling system
  • Low power consumption
  • Compliance with CE regulations
